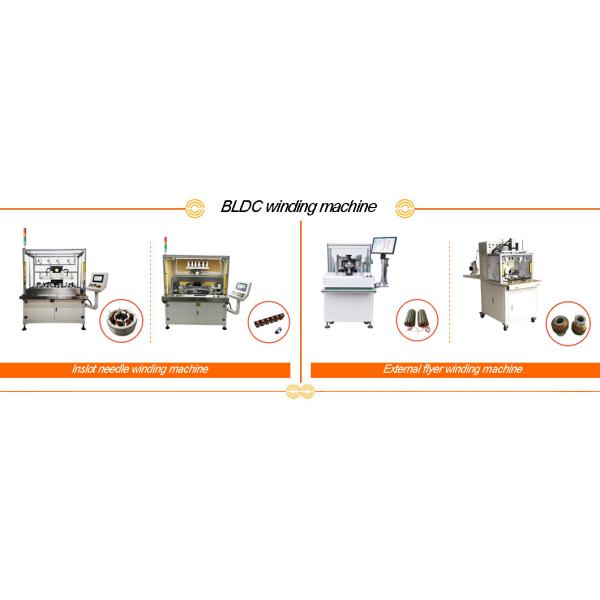

Precision Middle Size 4 Stations BLDC Motor Needle Winding Machine

Model NO. : WIND-BLDC-4

Air Source : 7 Kg/Cm

Spindle Spacing : 155mm

Transport Package : Wooden Case

Specification : Middle Size

Trademark : Wind Automation

Origin : China

HS Code : 8479811000

Production Capacity : 100 Sets/Year

Contact Now

4 Stations BLDC Motor Needle Winding Machine
This needle winding machine has four working stations, it can wind 4 stators synchronously. It is widely used to produce coils for BLDC stators. Once stator is loaded, all the process will be done by machine automatically, including winding, hooking, indexing.

(1)Specification
Working station 4
Stator OD 20~100mm
Stator ID 12~80mm
Stack length 5~70mm
Wire diameter 0.08~1.0mm
Spindle spacing 155mm
Drive servo 3000W 1 set
Indexing servo 2000W 2 sets
Arraying servo 750W 2 sets
Air source 7 kg/cm
Power supply 380V 50HZ 15A
Dimension 1000x1100x1700mm
Weight 680KG

(2) Application
It is suitable for brushless motors, home appliance motors, medical equipment motors, industrial fans, pump motors, hybrid car vehicles motors, rotary transformers, sensors, servo motors, stepper motors, vacuum cleaner motors, power tool motors.

(3)Features
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 800r/min
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
Provide customized service
